How to use LM(3,MOD_LALT) for the wireless PCB

Created by Ranjeet Joshi, Modified on Sun, 13 Nov, 2022 at 9:56 PM by Ranjeet Joshi

This is not supported but there is a work around.


This QMK is not supported with the current firmware but there is a work around explained below: NOTE: with this you have to press Fn+4 for Alt+F4

1. Open VIA and Side Load the .JSON File

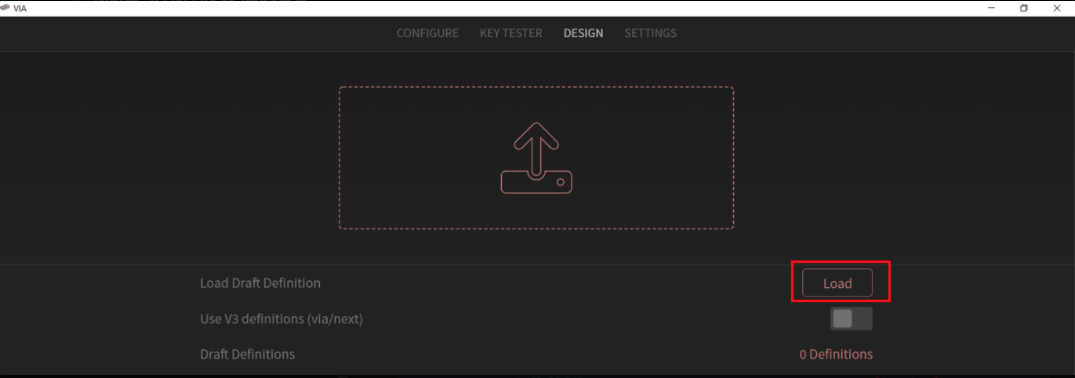

2. Press the Load Button to sideload the .JSON File.

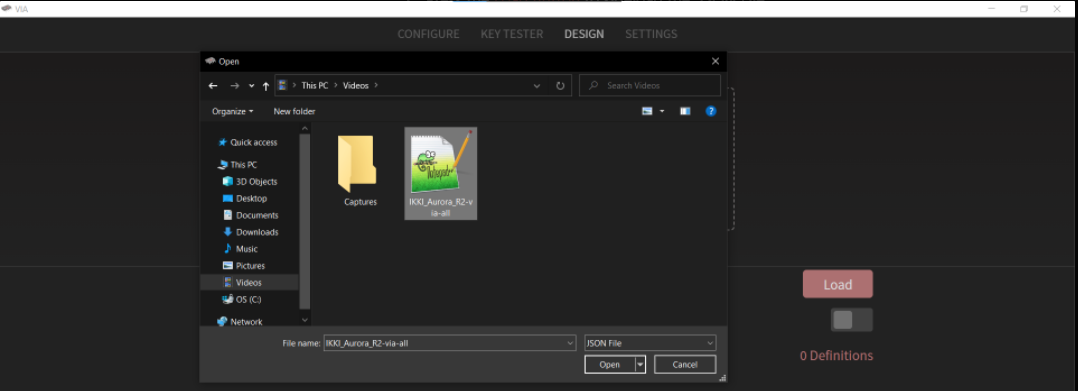

3. Select the .JSON File then click open.

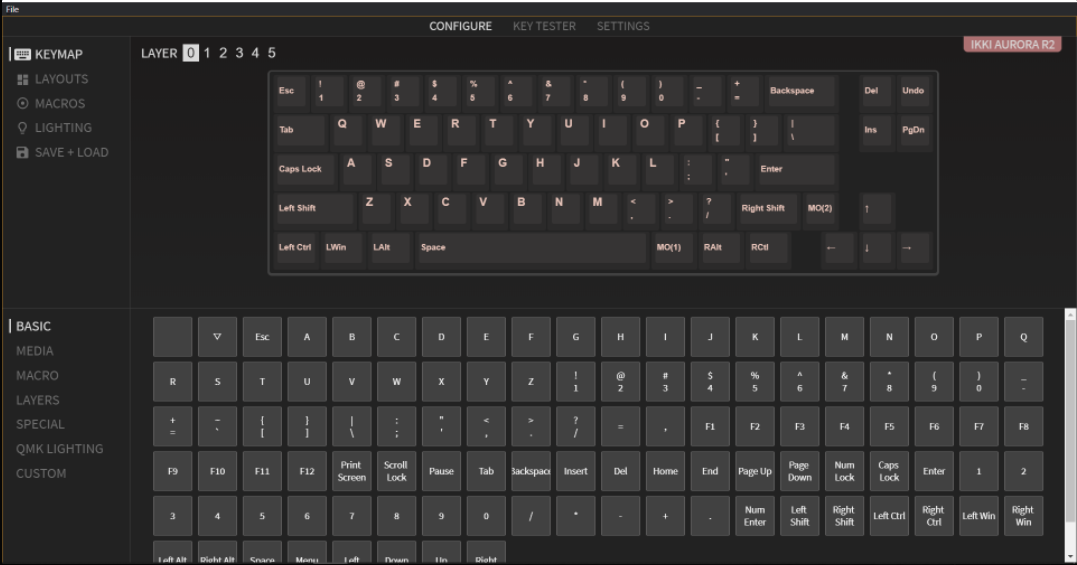

4. You should able to see your VIA Keymap.

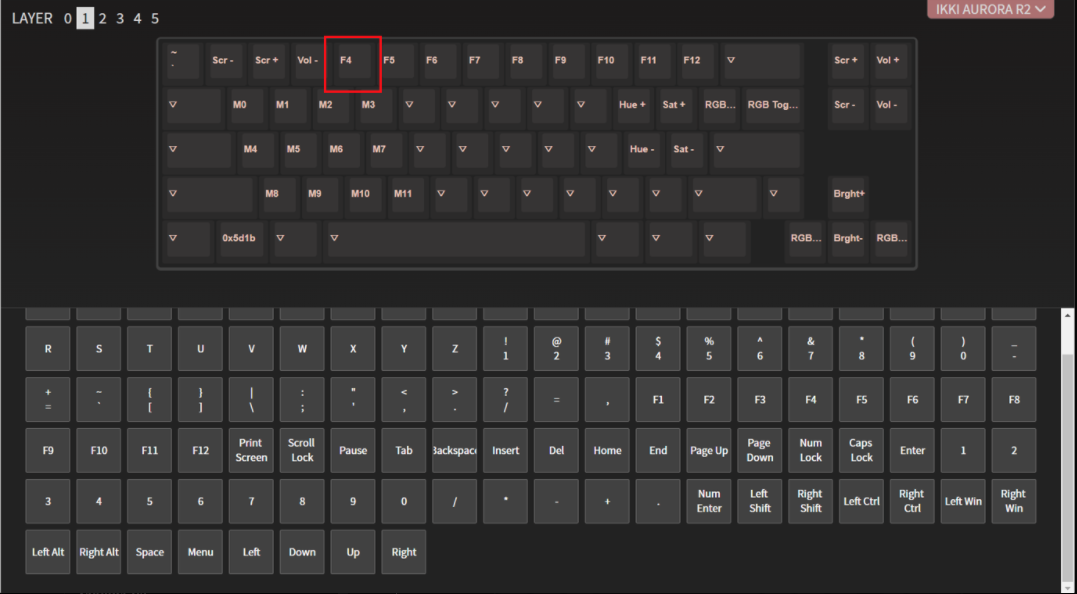

5. Go to Layer 1 then click the where number F4 is originally positioned.

6. Go to Special Tab and click the Any

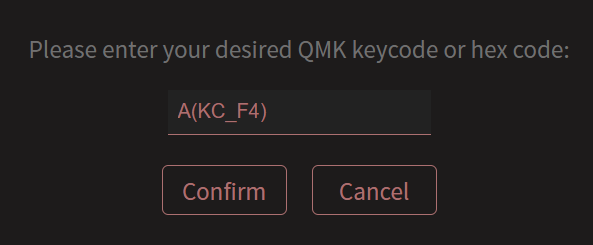

7. A pop up box will appear then will ask you to enter a QMK keycode. Type this there A(KC_F4) then click the Confirm Button

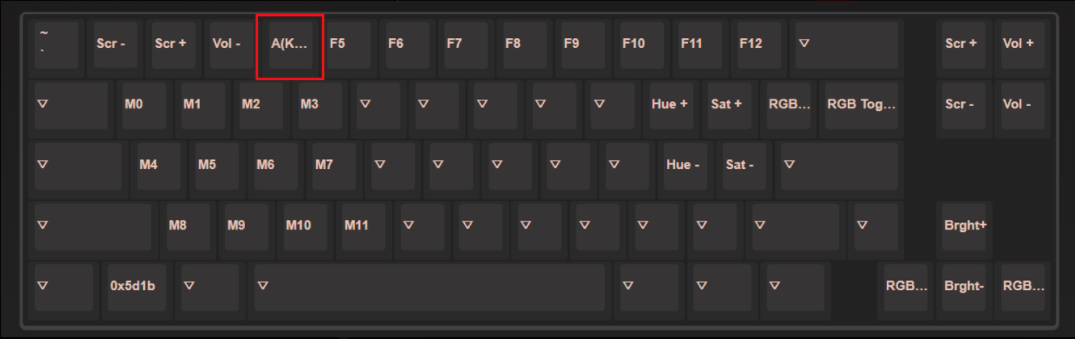

8. After that your done.
